DETAILED INTRODUCTION
OVERVIEW
The STRAFE-E SET is purpose-built for electric mountain bikes (eMTB), tackling the durability challenges that standard hubs struggle with under motor-assisted power. Unlike traditional hubs designed for human-powered bikes, the STRAFE-E SET is engineered to withstand the extreme torque and loads of eMTBs.
Highlights:
➤ Reinforced Steel Cassette Body – High-strength steel construction ensures superior durability under the intense torque of eMTB motors.
➤ Unmatched Strength – Engineered for riders who push their eMTBs to the limit, delivering maximum reliability—its burliness is never in question!
SPECIFICATIONS

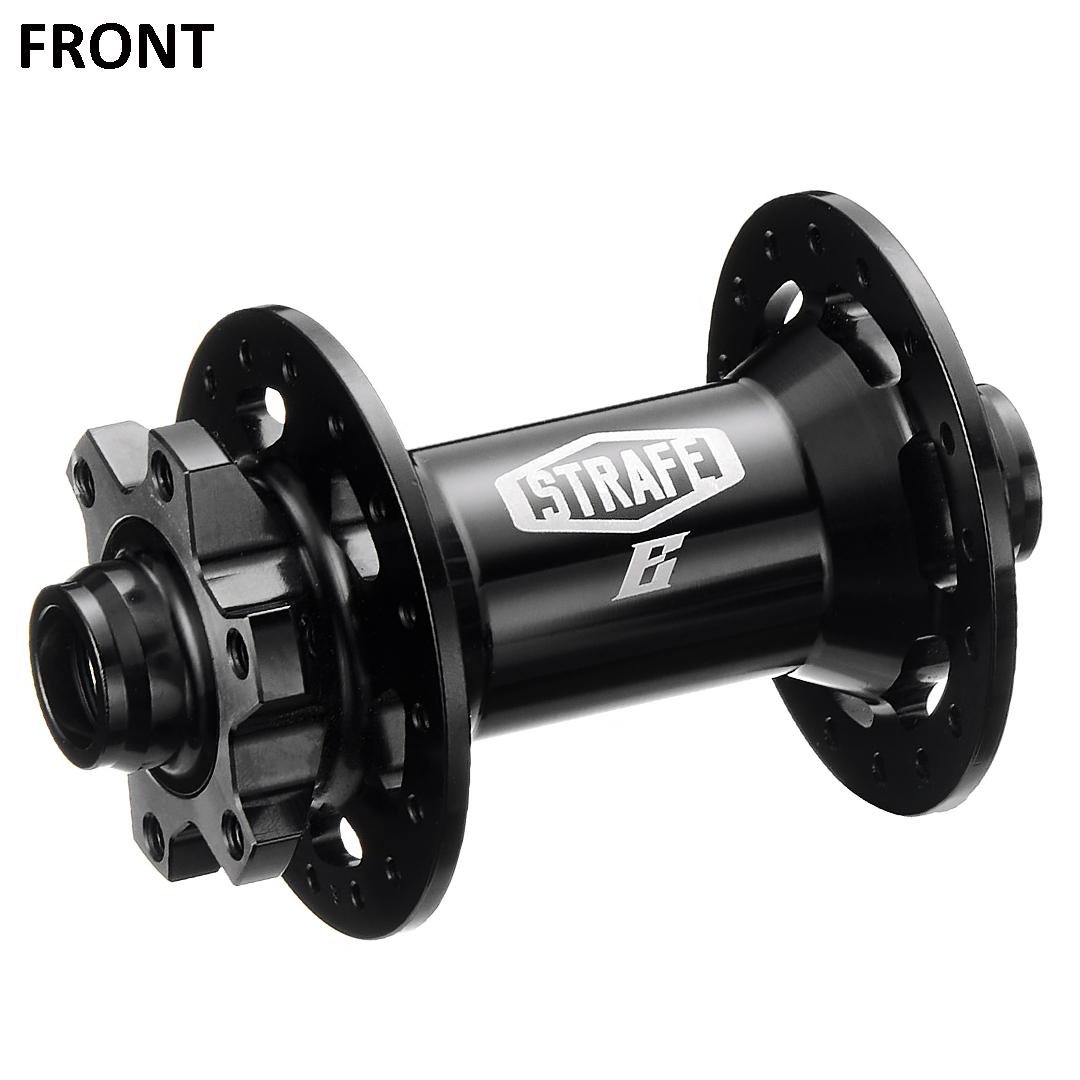

【Front Hub】STRAFE-E F-15 BOOST
• Material: Aluminum with CNC Machined
• Axle Diameter: 15mm
• Spacing: Boost 110mm
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 2 Sealed Bearing
• Pitch Circle Diameter (Drive Side): 58mm
• Pitch Circle Diameter (Non-Drive Side): 58mm
• Center to Flange Distance (Drive Side): 37.9mm
• Center to Flange Distance (Non-Drive Side): 25.9mm
• Spoke Hole Diameter: 2.5mm
• Weight: 195g
• Color Options: Black

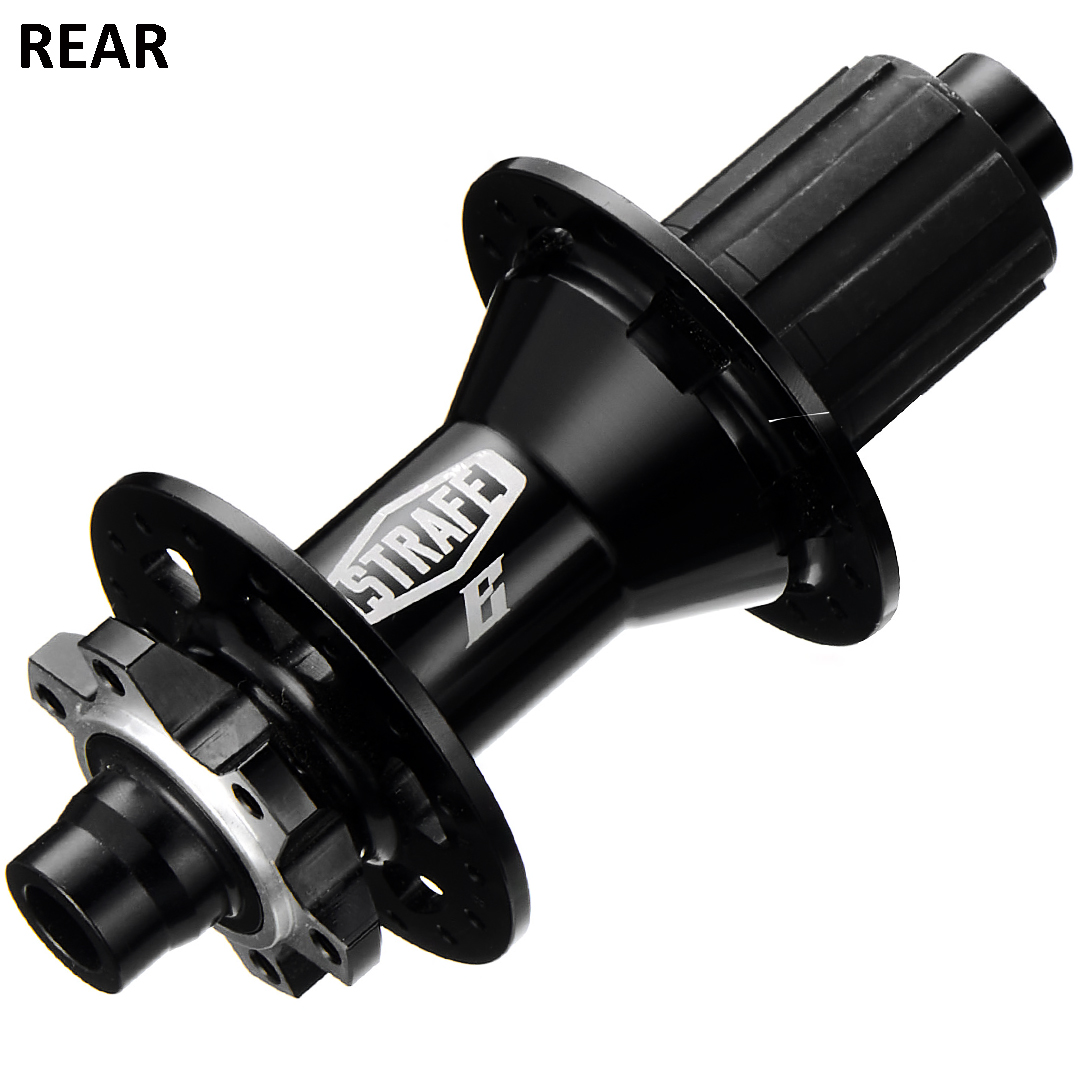

【Rear Hub】STRAFE-E R-148 BOOST
• Material: Aluminum with CNC Machined
• Axle Diameter: 12mm
• Spacing: Boost 148mm
• Driver: SHIMANO HG 10/11 Speed
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 4 Sealed Bearing
• Engagement: 3 Pawls, 30 Ratchet, 30 Point
• Pitch Circle Diameter (Drive Side): 58mm
• Pitch Circle Diameter (Non-Drive Side): 58mm
• Center to Flange Distance (Drive Side): 20.7mm
• Center to Flange Distance (Non-Drive Side): 36.64mm
• Spoke Hole Diameter: 2.5mm
• Weight: 390g
• Color Options: Black
純文
ADDITIONAL NOTES
❖ DA BOMB reserves the right to modify product specifications without prior notice.
❖ Retail prices may vary across countries due to import taxes and shipping costs.
❖ Always check the maximum torque specified on our products and use a torque wrench for assembly. The warranty does not cover damage caused by overtightening or negligence.
