DETAILED INTRODUCTION
OVERVIEW
The STRAFE-DJ SET is built for durability and simplicity, making it the perfect choice for dirt jump and street riders. The rear hub features a BOLT-ON design, specifically made for single-speed freewheels but also compatible with 10-speed freewheels. Whether you're sending it on the biggest jumps or shredding the streets, the STRAFE-DJ SET is built to take it all.
Rear Hub Highlights:
➤ Dual Seal Caps – Effectively block sand, dust, water, and other contaminants, ensuring long-lasting performance.
➤ ENDURO Bearings – Deliver ultra-smooth rotation for a superior ride.
➤ High-Strength 7075 Aluminum Axle – Precision-machined to withstand extreme riding abuse.
SPECIFICATIONS

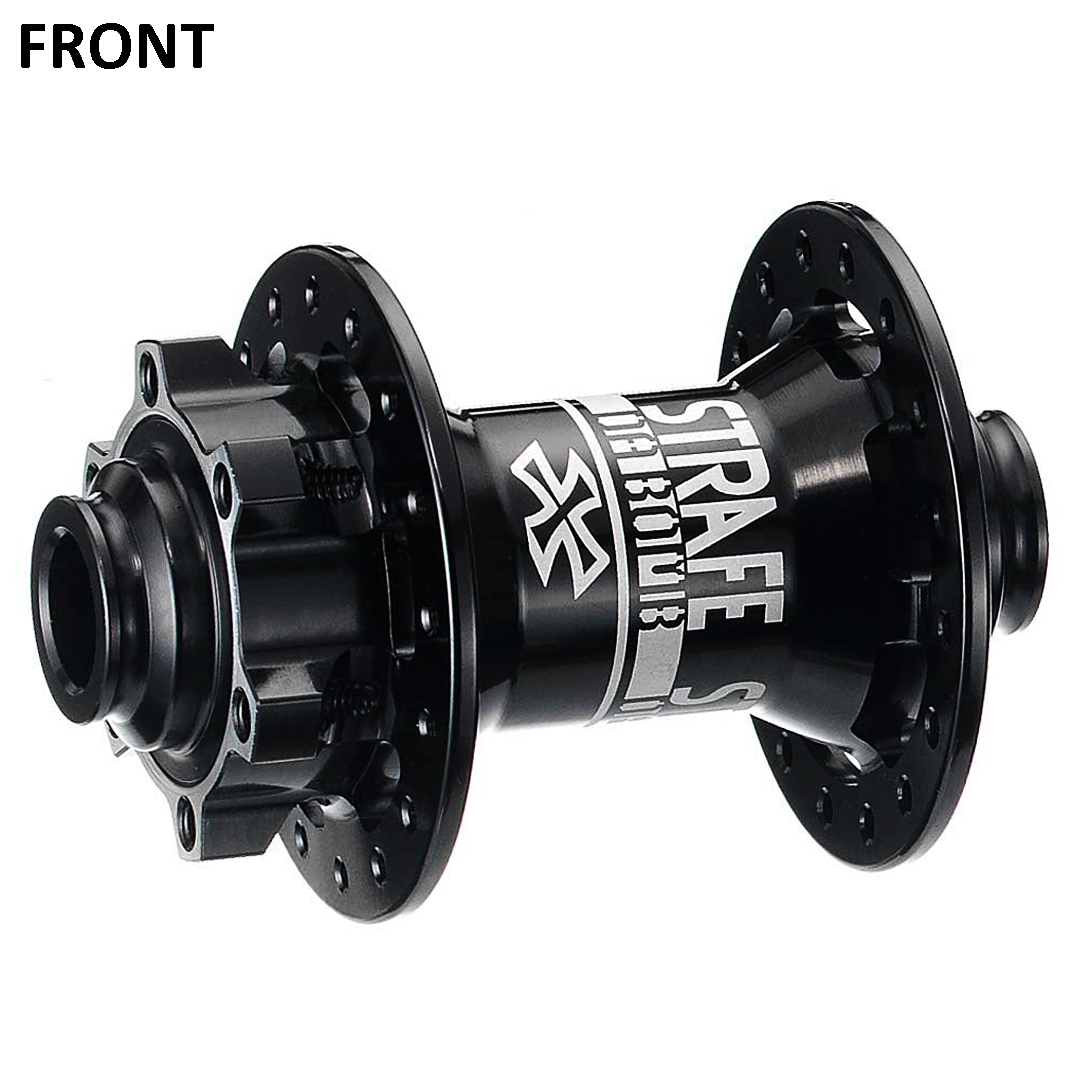

【Front Hub】STRAFE-DJ F-15
• Material: Aluminum with CNC Machined
• Axle Diameter: 15mm
• Spacing: 100mm
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 2 Sealed Bearing
• Flange Diameter (Drive Side): 58mm
• Flange Diameter (Disc Side): 58mm
• Center to Flange (Drive Side): 20.85mm
• Center to Flange (Disc Side): 32.91mm
• Weight: 196g
• Color Options: Black

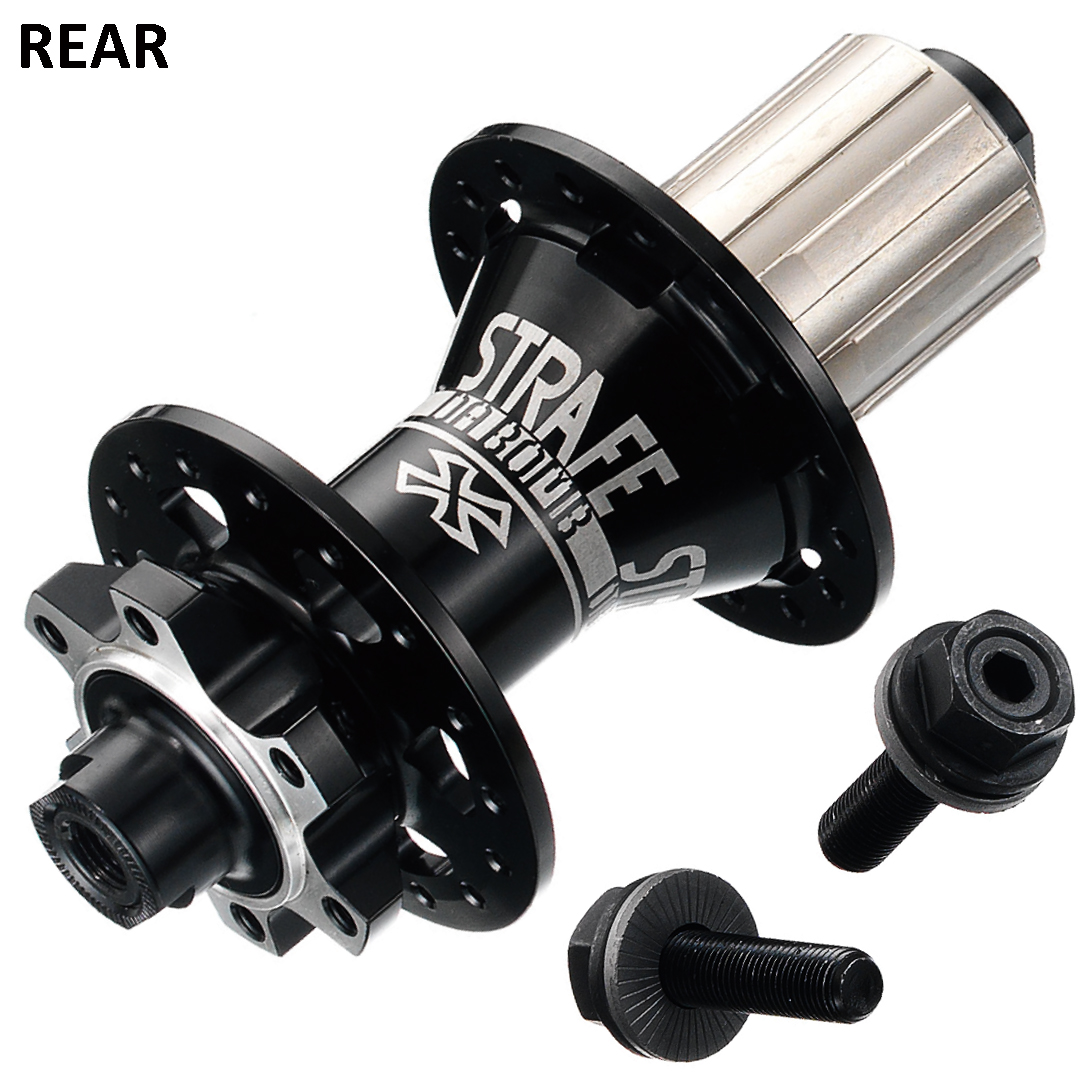

【Rear Hub】STRAFE-DJ R-10
• Material: Aluminum with CNC Machined
• Axle Diameter: 10mm
• Spacing: 135mm
• Driver: SHIMANO HG 10/11 Speed
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 4 Sealed Bearing
• Engagement: 3 Pawls, 30 Point
• Flange Diameter (Drive Side): 58mm
• Flange Diameter (Disc Side): 58mm
• Center to Flange (Drive Side): 33.64mm
• Center to Flange (Disc Side): 17.7mm
• Weight: 569g
• Color Options: Black
ADDITIONAL NOTES
❖ DA BOMB reserves the right to modify product specifications without prior notice.
❖ Retail prices may vary across countries due to import taxes and shipping costs.
❖ Always check the maximum torque specified on our products and use a torque wrench for assembly. The warranty does not cover damage caused by overtightening or negligence.
