DETAILED INTRODUCTION
OVERVIEW

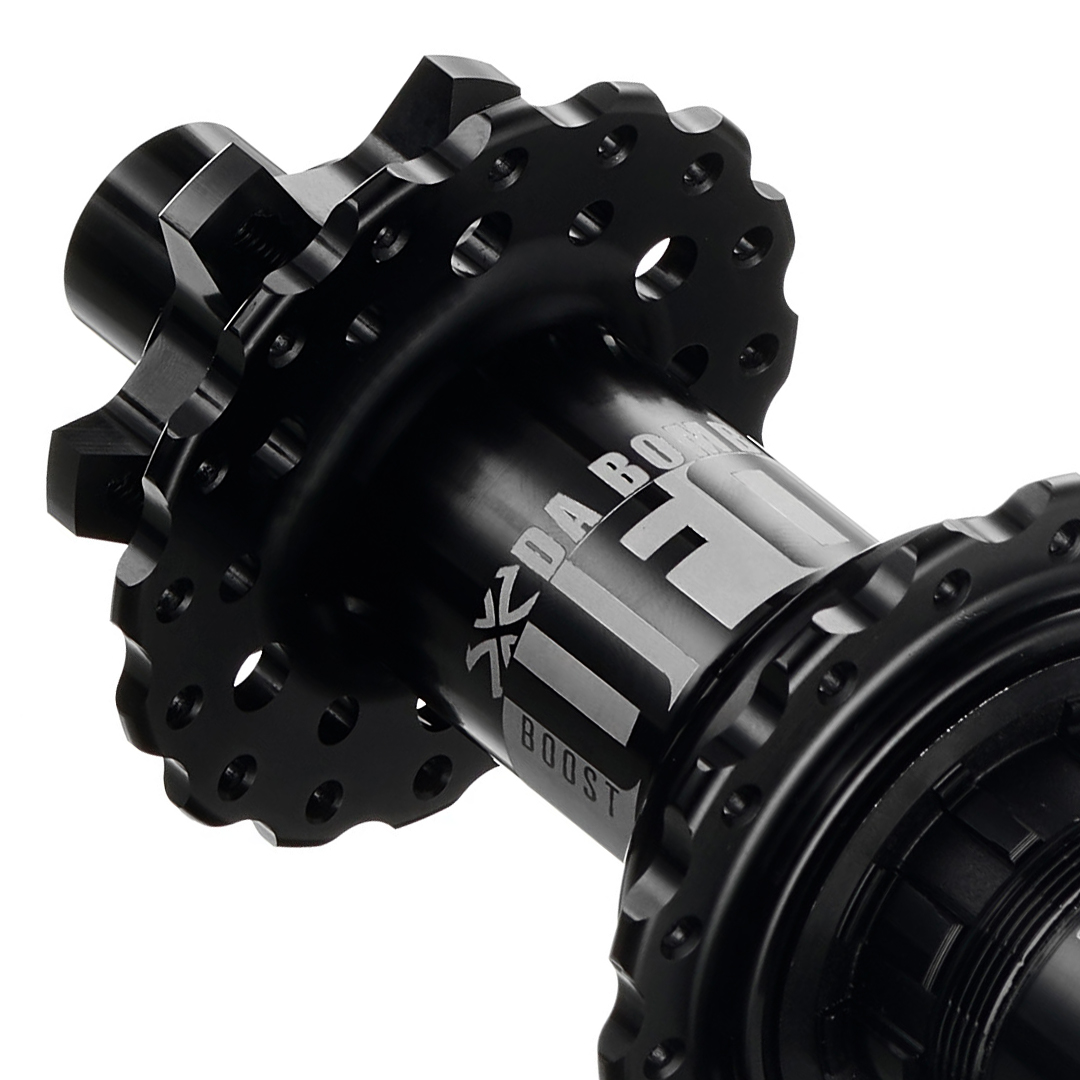

The UFO2.0 BOOST SET (MS) showcases a quadruple petal-flange design, a cutting-edge innovation by DA BOMB. This advanced design increases spoke rigidity during wheel assembly, preventing spoke overlap and interference—ensuring seamless wheel construction. A perfect hub set for riders who value innovation and versatility in their Boost wheel builds!
Rear Hub Highlights:
➤ Airtight Ratchet: Engineered for superior waterproof and dustproof performance, providing reliable operation in all conditions.

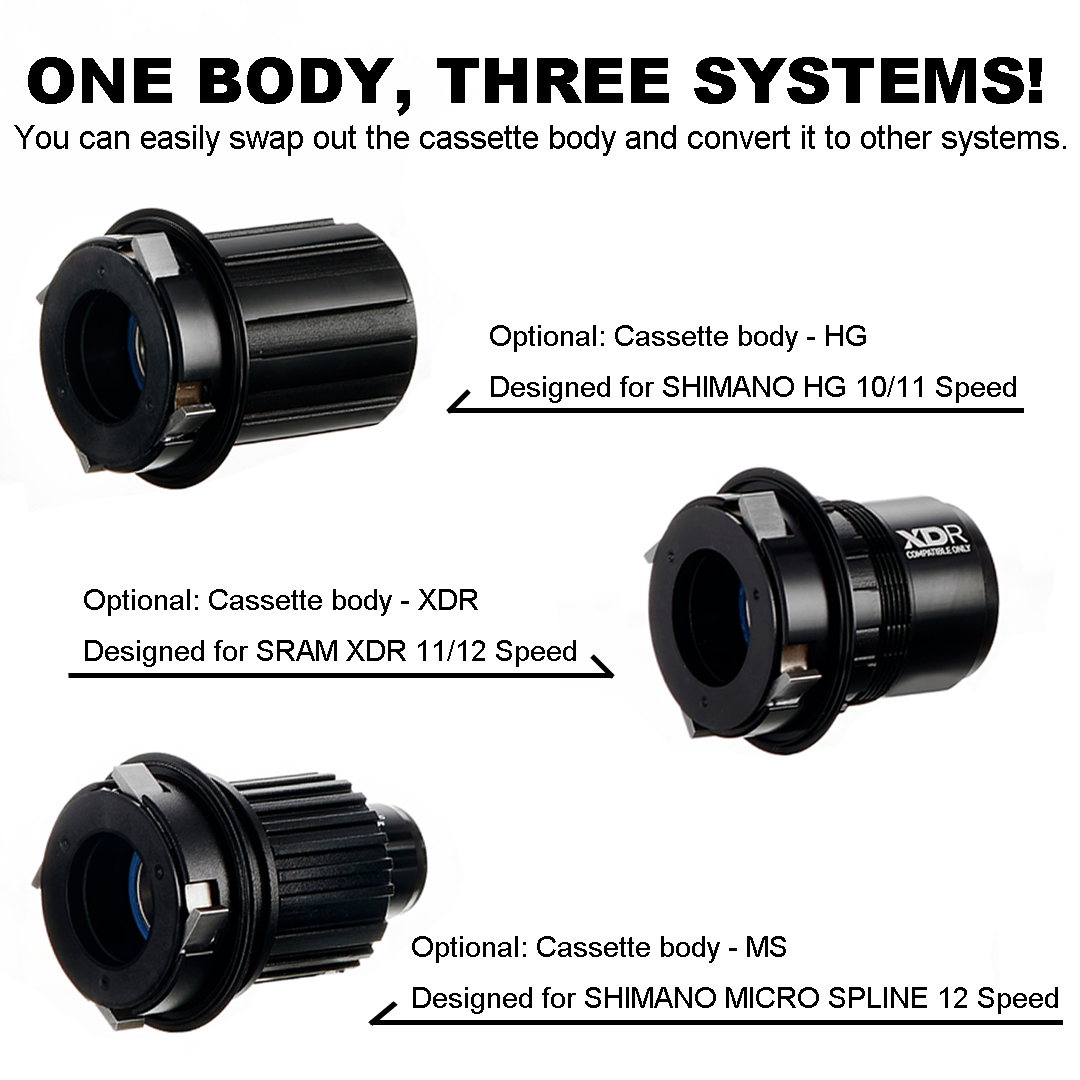

➤ Compatibility: One Body, Three Systems! Swap cassette bodies without replacing the hub body, offering unmatched adaptability and cost efficiency. Convert seamlessly between:
➊ SHIMANO HG (10/11-speed)
➋ SHIMANO MICRO SPLINE (12-speed)
➌ SRAM XDR (11/12-speed)
Important Note: This hub is specifically designed for MTB use only. Please don't use it on e-bikes, as doing so will void the warranty.
SPECIFICATIONS

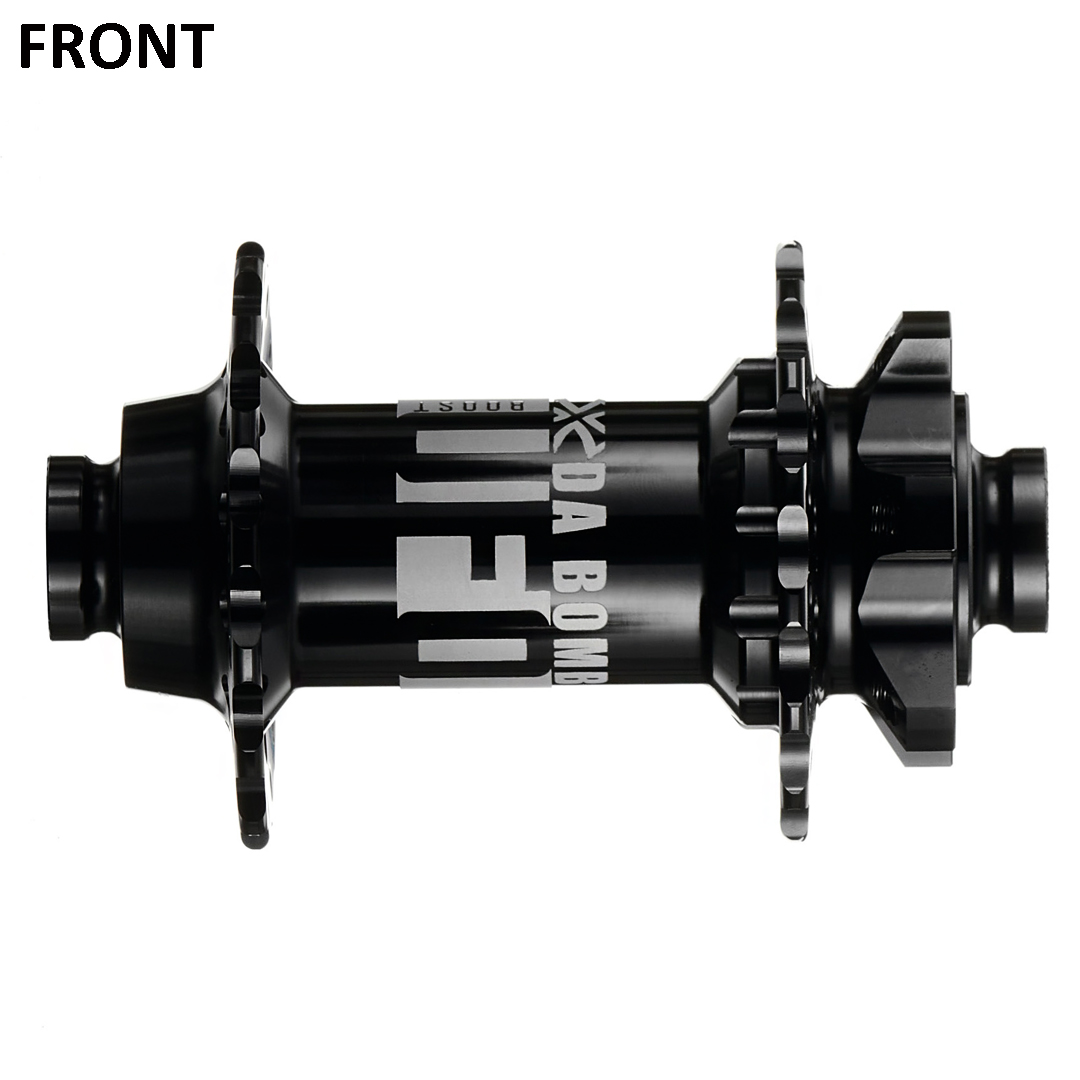

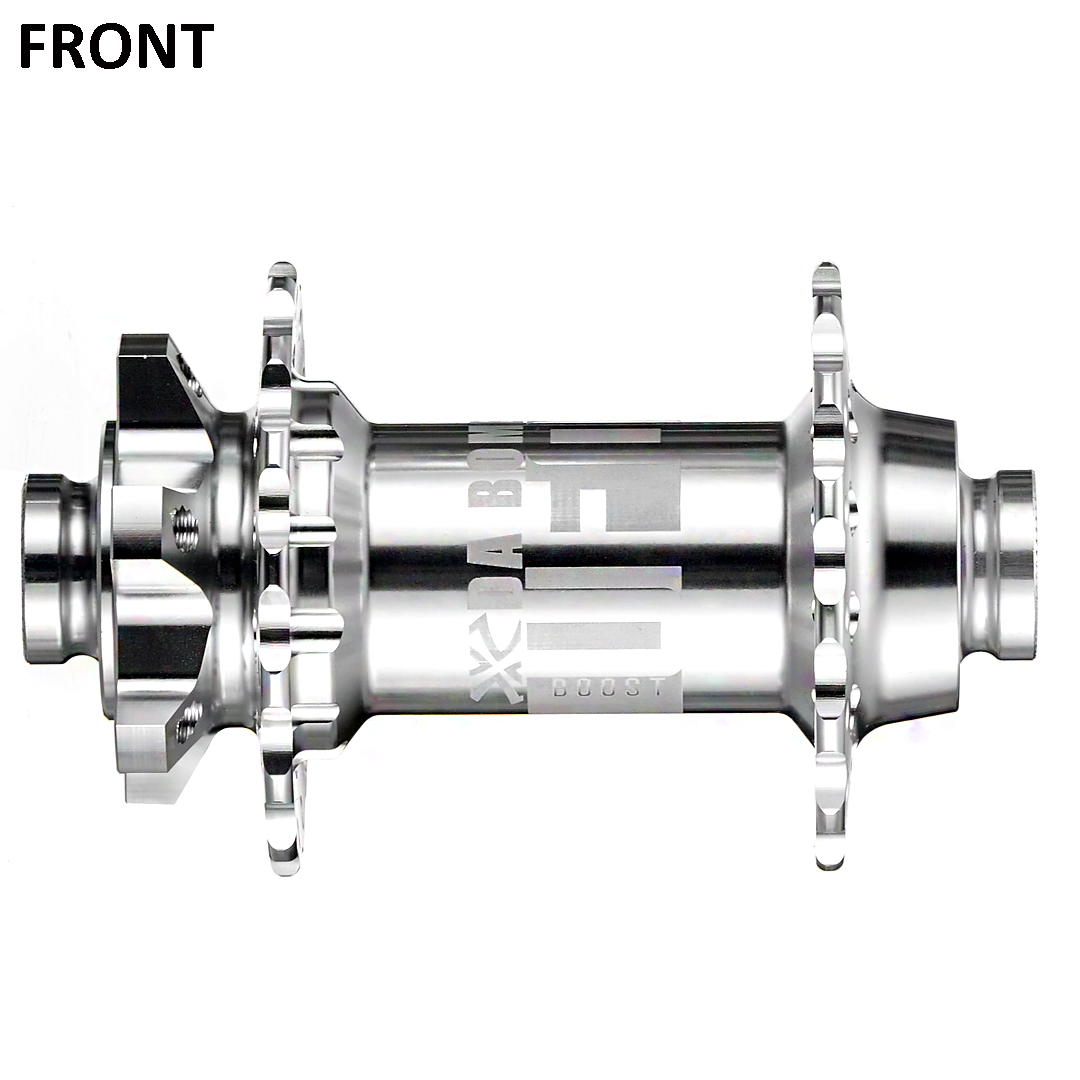

【Front Hub】UFO2.0 F-15 BOOST
• Material: Aluminum with CNC Machined
• Axle Diameter: 15mm
• Spacing: Boost 110mm
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 2 Sealed Bearing
• Pitch Circle Diameter (Drive Side): 58mm
• Pitch Circle Diameter (Non-Drive Side): 58mm
• Center to Flange Distance (Drive Side): 32.35mm
• Center to Flange Distance (Non-Drive Side): 26.75mm
• Weight: 204g
• Color Options: Black / Liquid Silver

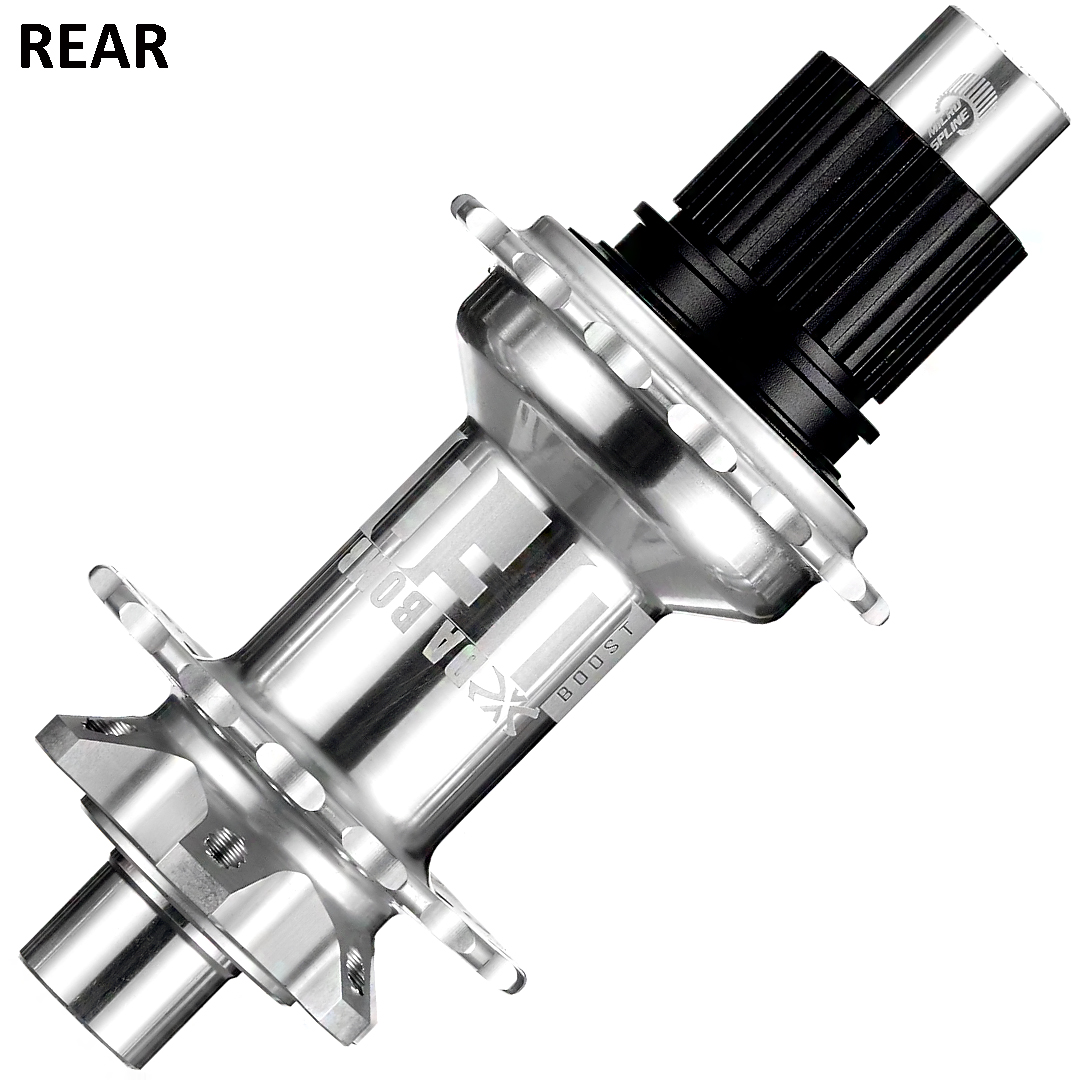

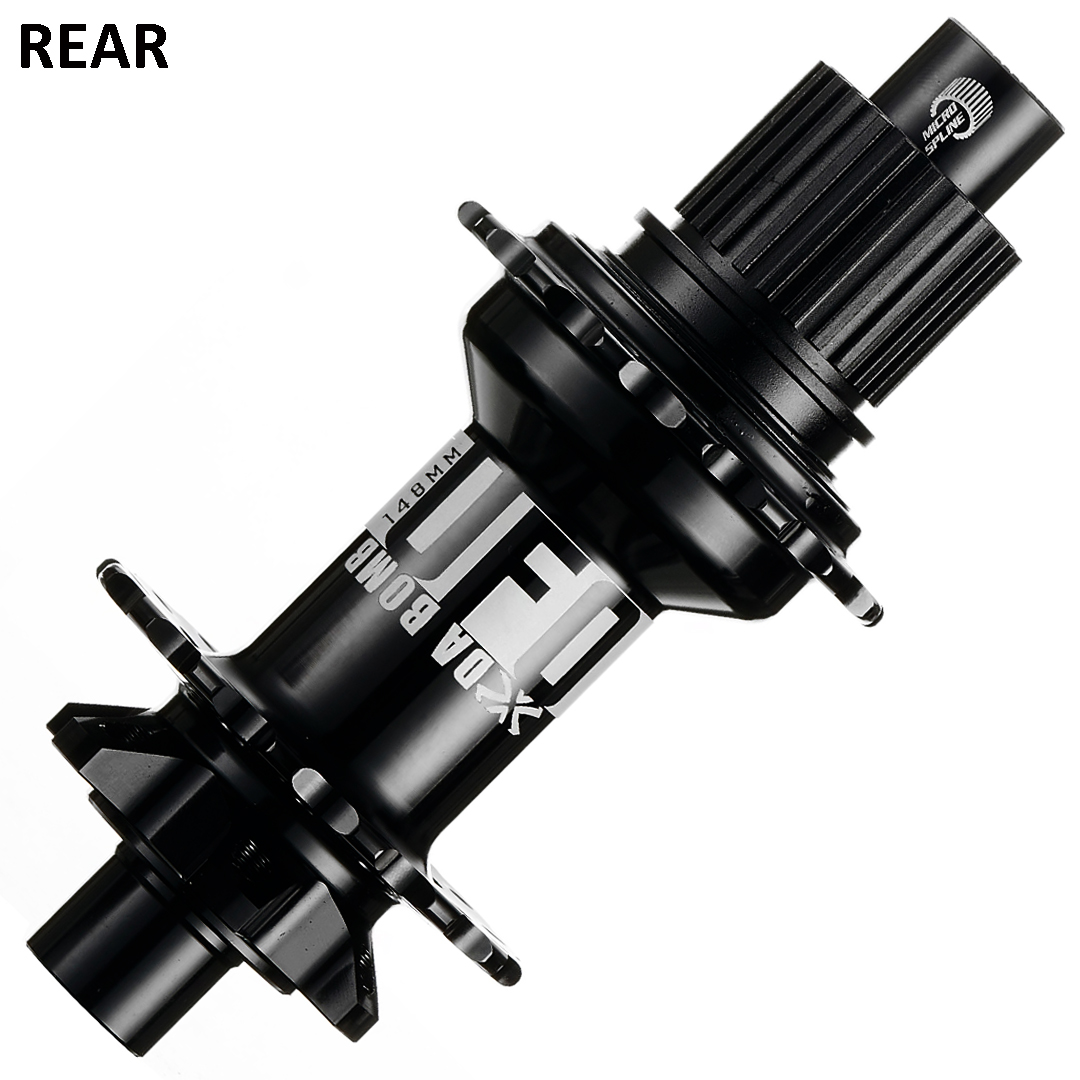

【Rear Hub】UFO2.0 R-148 BOOST (MS)
• Material: Aluminum with CNC Machined
• Axle Diameter: 12mm
• Spacing: Boost 148mm
• Driver: SHIMANO MICRO SPLINE 12 Speed
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 4 Sealed Bearing
• Engagement: 6 Pawls, 36 Ratchet, 36 Point
• Pitch Circle Diameter (Drive Side): 58mm
• Pitch Circle Diameter (Non-Drive Side): 58mm
• Center to Flange Distance (Drive Side): 19.85mm
• Center to Flange Distance (Non-Drive Side): 37.45mm
• Spoke Hole Diameter: 2.6mm
• Weight: 312g
• Color Options: Black / Liquid Silver
ADDITIONAL NOTES
❖ DA BOMB reserves the right to modify product specifications without prior notice.
❖ Retail prices may vary across countries due to import taxes and shipping costs.
❖ Always check the maximum torque specified on our products and use a torque wrench for assembly. The warranty does not cover damage caused by overtightening or negligence.
