DETAILED INTRODUCTION
OVERVIEW

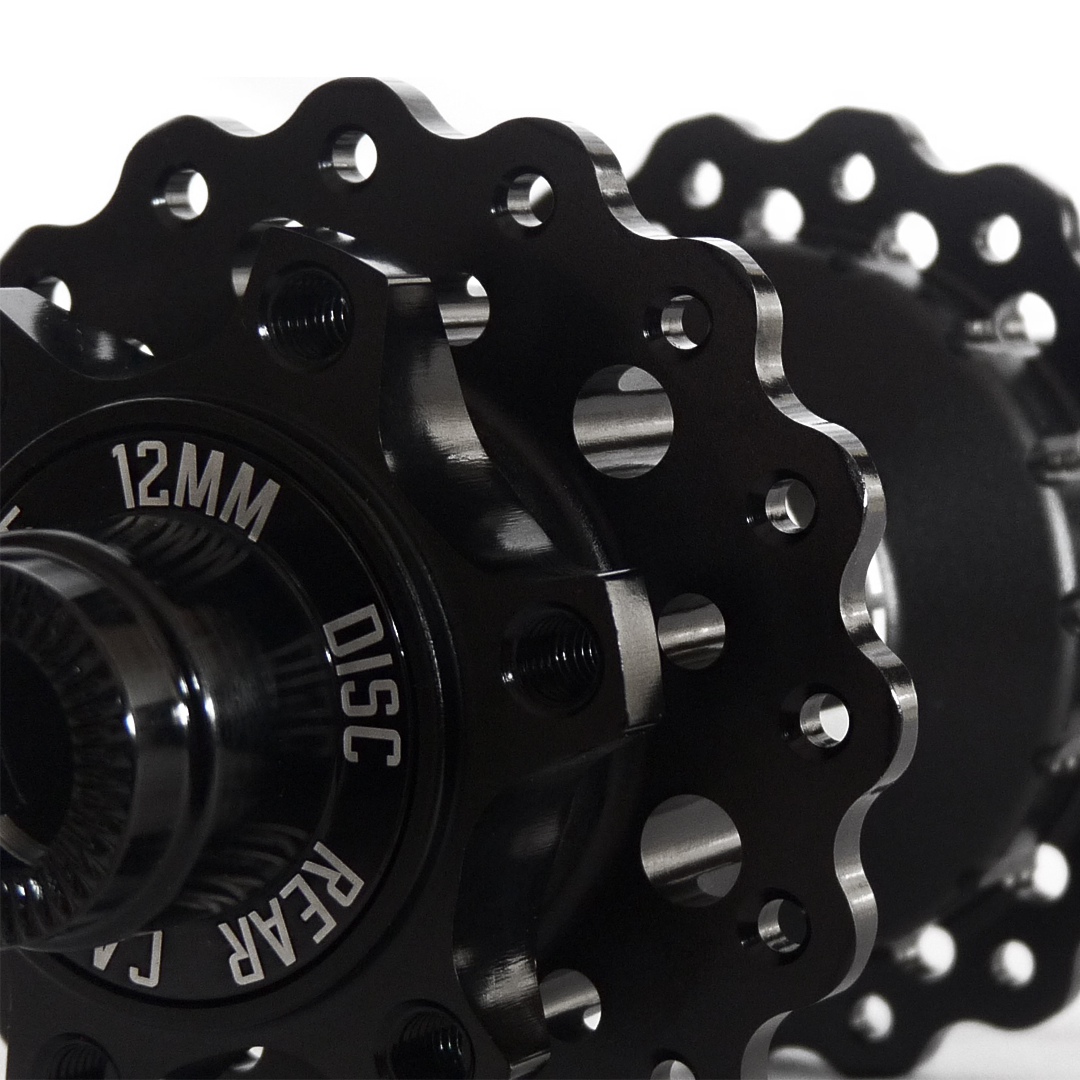

The UFO1.0 NON-BOOST SET (HG) features a unique petal-flange design, which enhances spoke rigidity for better performance. Perfect for riders seeking versatility and precision for Non-Boost setups!

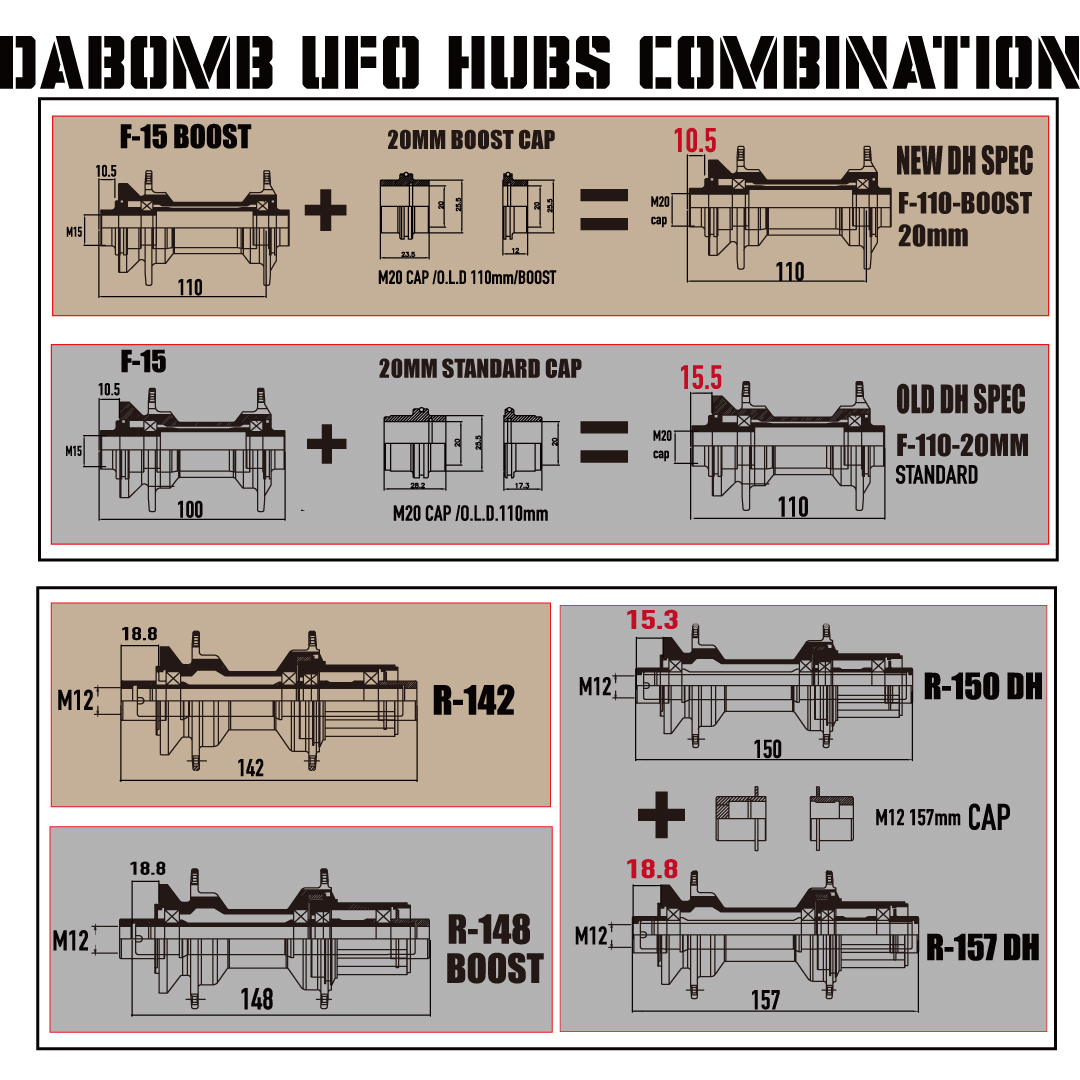

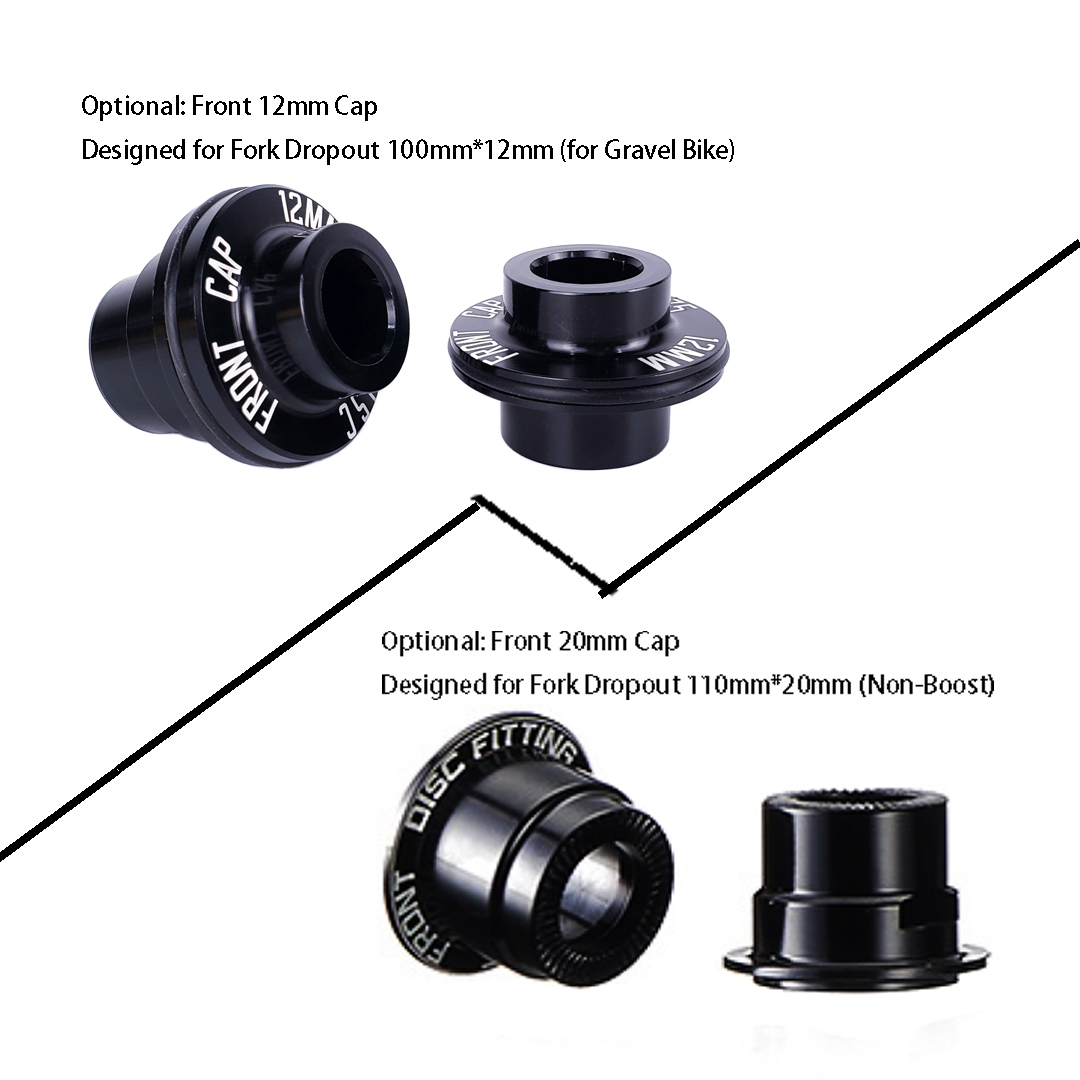

Front Hub Optional Caps:
➤ Front 20mm Cap: Converts your front hub for DOWNHILL Non-Boost specification, compatible with a 20mm Thru-Axle.
➤ Front 12mm Cap: Adapts your front hub for Gravel Bike specification, compatible with a 12mm Thru-Axle.
Rear Hub Highlights:

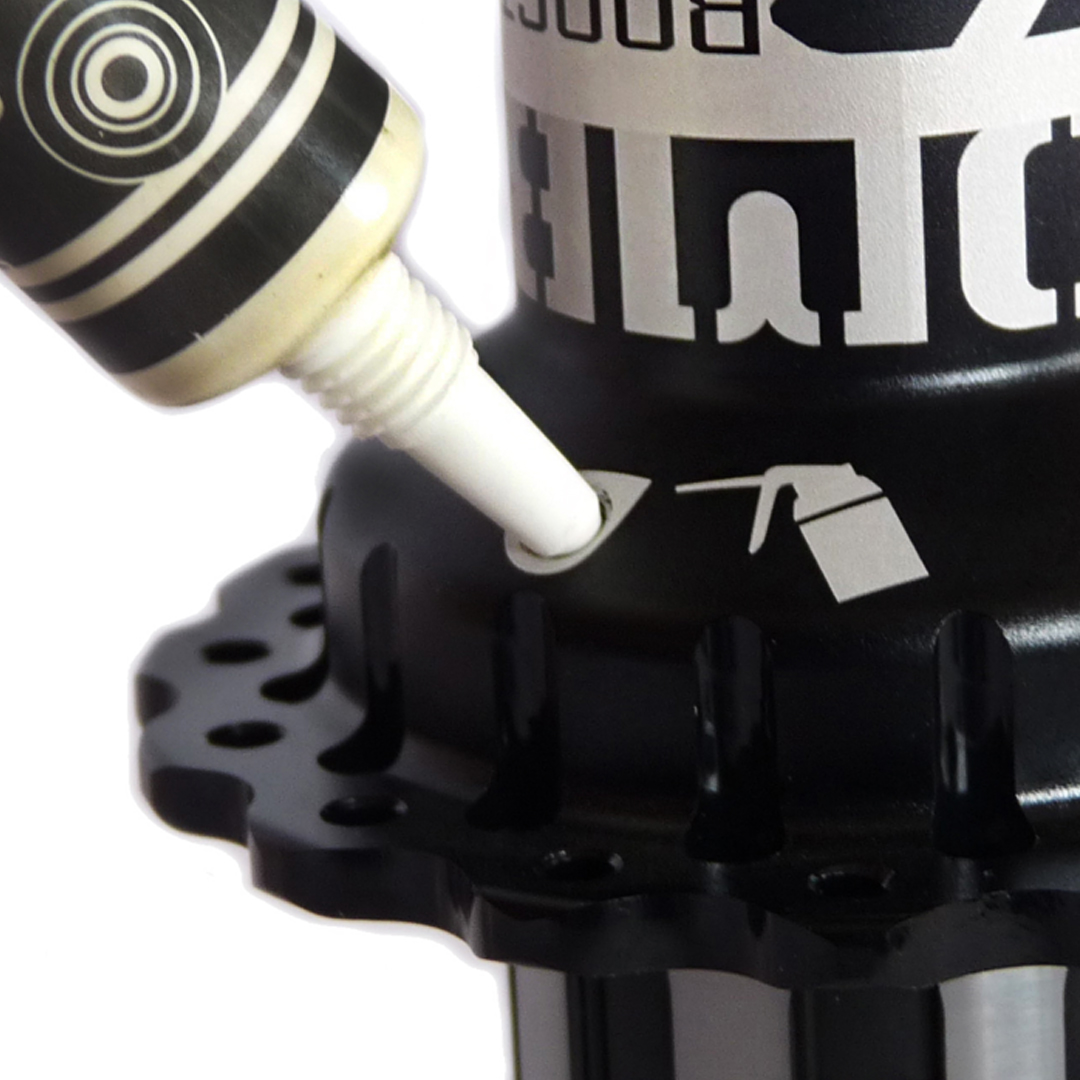

➤ Grease-Filling Port: Allows easy maintenance of the ratchet system without disassembly.
➤ Adjust hub sound: Fill more grease for a quieter ride or less grease for a louder ride.

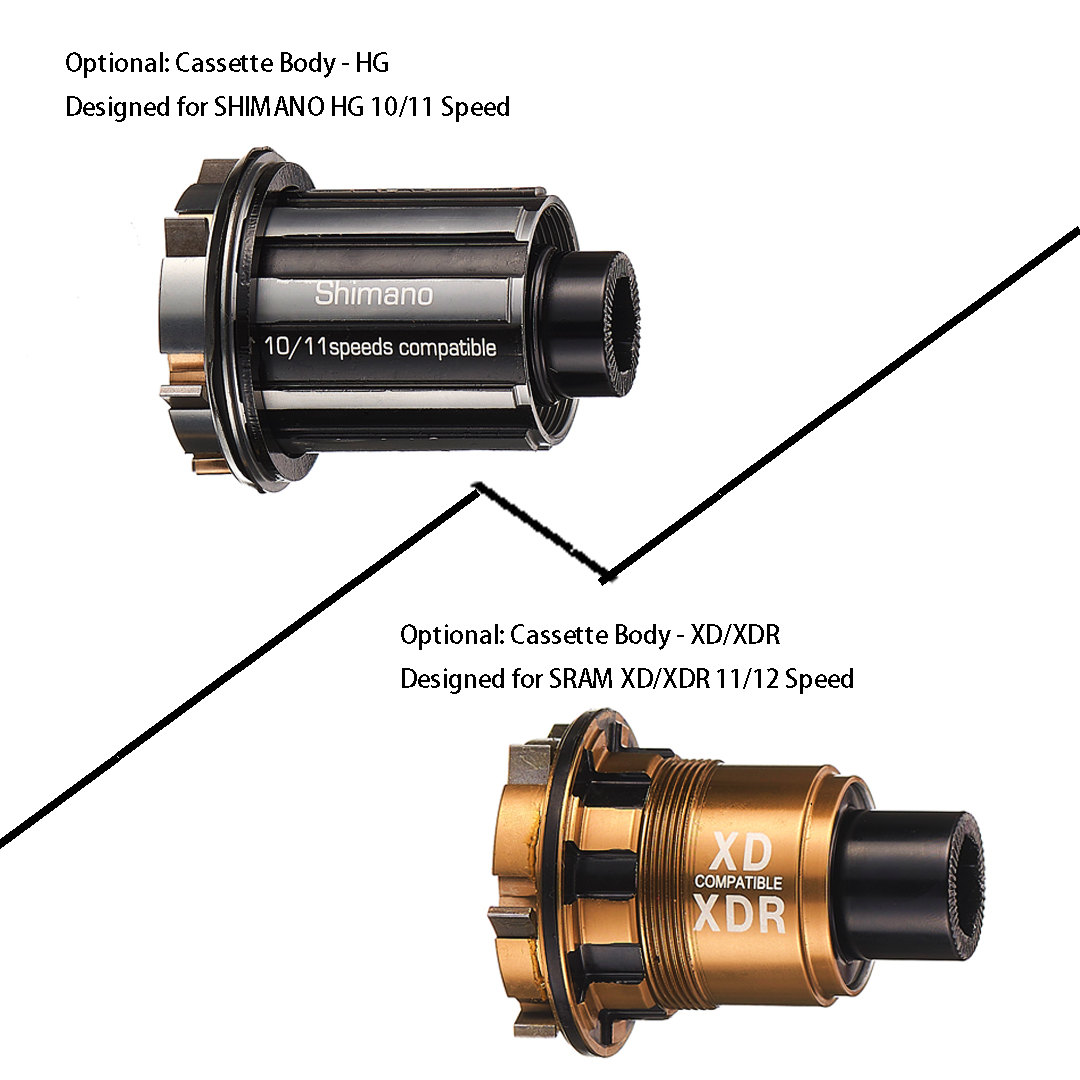

➤ Compatibility: Compatible with SRAM XD/XDR 11/12-speed by changing the cassette body.
Important Note: This hub is specifically designed for MTB use only. Please don't use it on e-bikes, as doing so will void the warranty.
SPECIFICATIONS

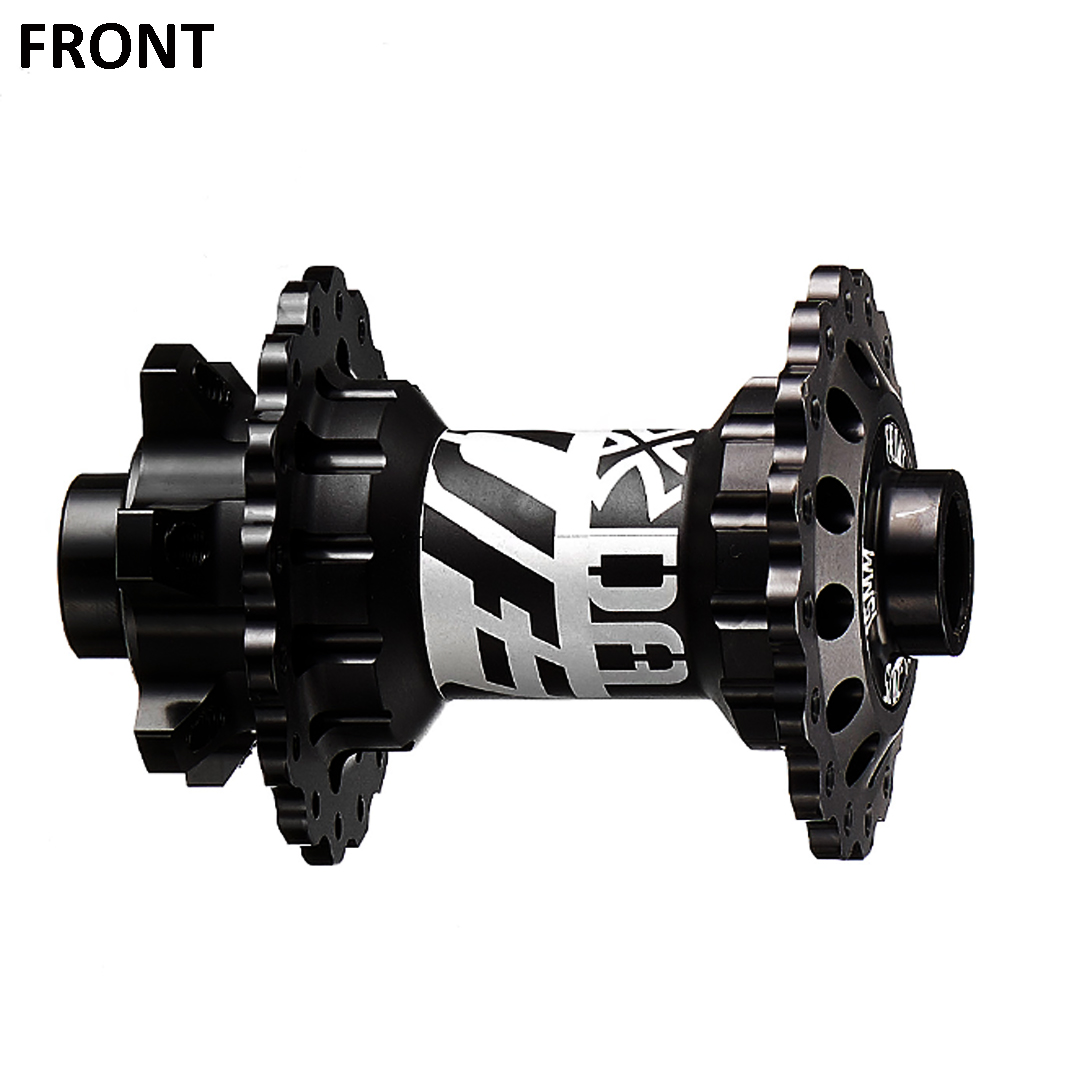

【Front Hub】UFO F-15
• Material: Aluminum with CNC Machined
• Axle Diameter: 15mm
• Spacing: 100mm
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 2 Sealed Bearing
• Pitch Circle Diameter (Drive Side): 58mm
• Pitch Circle Diameter (Non-Drive Side): 58mm
• Center to Flange Distance (Drive Side): 36.95mm
• Center to Flange Distance (Non-Drive Side): 21.95mm
• Spoke Hole Diameter: 2.8mm
• Weight: 211g
• Color Options: Black

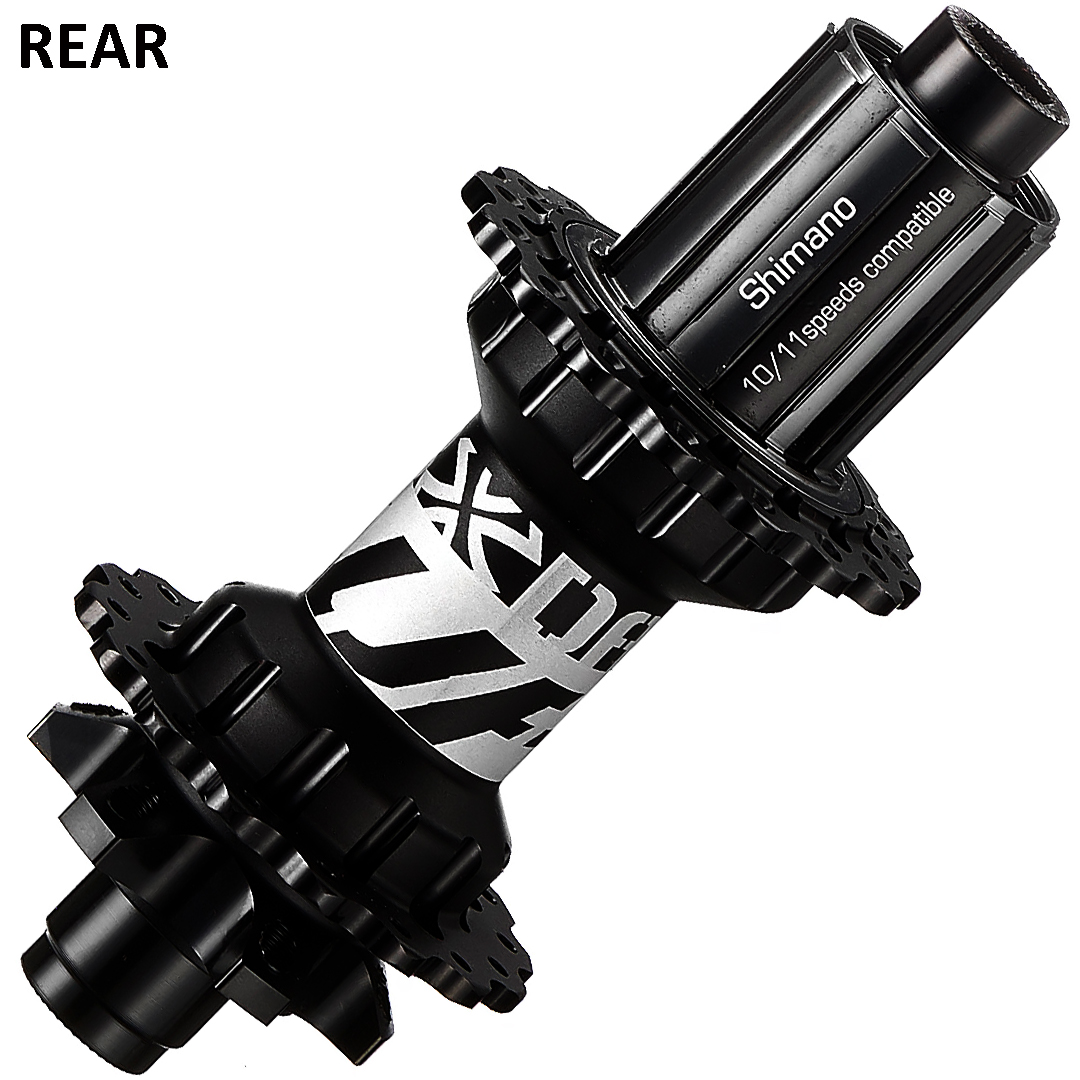

【Rear Hub】UFO R-142
• Material: Aluminum with CNC Machined
• Axle Diameter: 12mm
• Spacing: 142mm

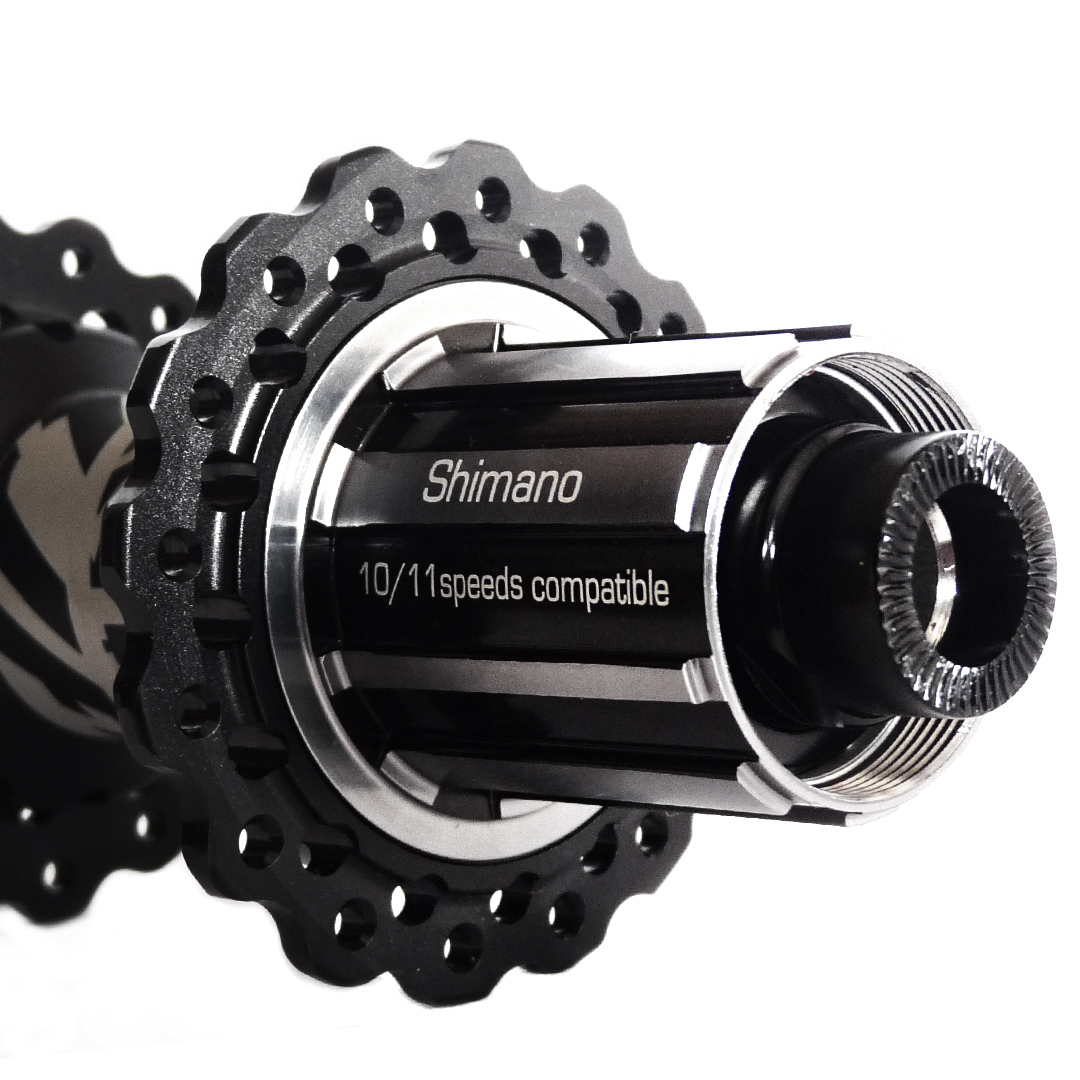

• Driver: SHIMANO HG 10/11 Speed
• Spoke Hole: 32H
• Disc Mount: 6 Bolt
• Bearing: 4 Sealed Bearing
• Engagement: 6 Pawls, 36 Ratchet, 72 Point
• Pitch Circle Diameter (Drive Side): 58mm
• Pitch Circle Diameter (Non-Drive Side): 58mm
• Center to Flange Distance (Drive Side): 20.81mm
• Center to Flange Distance (Non-Drive Side): 17.55mm
• Spoke Hole Diameter: 2.8mm
• Weight: 294g
• Color Options: Black
ADDITIONAL NOTES
❖ DA BOMB reserves the right to modify product specifications without prior notice.
❖ Retail prices may vary across countries due to import taxes and shipping costs.
❖ Always check the maximum torque specified on our products and use a torque wrench for assembly. The warranty does not cover damage caused by overtightening or negligence.
